Navigation:  7.20 > 7.20.0001 - OFFICIAL http://www.iaes-software.com/downloads/Setup_QDV_7_20_1.exe

This is the first version 7.20 which is version 7.19.769 with added documentation as issued June 5, 2020.



Warning for Windows 7 users: Windows 7 is no longer supported by Microsoft and we have encountered several issues with this O.S. since the end of support in January 2020. We cannot guarantee that QDV will work under this system. Please migrate as soon as possible and get Windows 10.

You will find further information on 'why and how to migrate' here: https://support.microsoft.com/en-us/help/4057281/windows-7-support-ended-on-january-14-2020



This official version brings several enhancements which are listed below and a new module.

You will find complete details in documentation of previous beta versions in this document and in the user manual. Just click the links below to reach the details.



This new version also brings a new module (available to users of the Ultimate Edition): QDV Tools for Excel. It is intended to provide interactive tools to exchange data between QDV and Excel. So far it has 1 user interface:



•It is called Mapping Tool. It will let you map a WBS or a list of the overhead of an estimate into any kind of Excel document. You can breakdown figures coming from QDV into any line of the Excel workbook using percentages or discrete values. This is the perfect tool for a Pricing team because it keeps a permanent link between the estimate and the Excel document. So you don't have to adapt your Excel document when changes are made under the linked estimate.

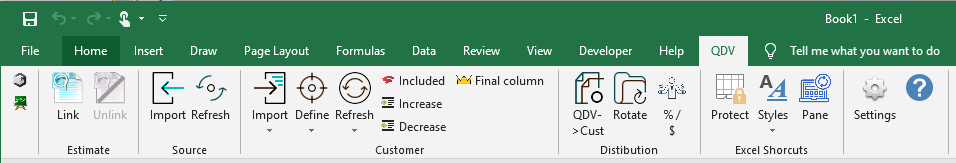

To activate this new module just click this button on your desktop: and start Microsoft Excel. You'll find a QDV tab in the ribbon:





Your need Microsoft Excel 2010 or greater to use this feature.

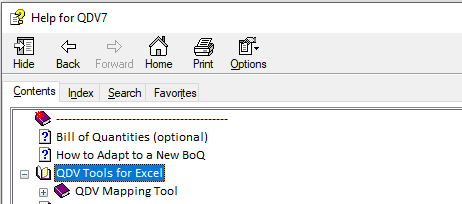

Complete documentation can be found here in the QDV user manual:



User Interface



New: Can start repair tools from the management module 7.19.0768

New: Formula bar in bottom panes 7.19.0762

New: Can prevent users from editing the bottom panes 7.19.0762

New: Warning message when tasks evaluated in total mode have a quantity for evaluation 7.19.0761

New: Check availability of distribution curves and post message 7.19.0757

New: Can create and select distribution curves from the minutes 7.19.0756

New: Can create and select distribution curves from the nomenclatures 7.19.0757

New: Tree structure of the database of the estimate available as a list 7.19.0756

New: Error dialog with 'Report error to QDV Team' functionality 7.19.0754

New: Function button to select files 7.19.0744

New: Can browse database of estimate by names or references 7.19.0744

New: The “Edit” button on the minutes column Properties dialog 7.19.0733

New: Can copy entire column to the Quantity_For_Evaluation_WBS column 7.19.0734

New: Warning when more than 4096 cell formats in Overhead 7.19.0735

New: Suggested references on column ReferenceToInternalArticle 7.19.0729

New: Creation of repartition curves can be controlled from user profiles 7.19.0726

New: Tool-tips for special columns in fields manager 7.19.0714

New: Display descriptions or references according to what is typed and switch using several "preferential" databases 7.19.0709

New: Groups in the overhead minute automatically create structure 7.19.0708

New: Tree for Overhead Minute 7.19.0707

New: Automatic entry of slave lists 7.19.0707

New: Added “Allow editing analytical reports and data sources” option to the user profile permissions 7.19.0707

New: Replace text functionality is available in WBS 7.19.0706

New: Groups available in the bottom pane of minutes 7.19.0706

New: Copy / Cut / Paste operations take the database of the estimate into account 7.19.0702

New: Copy / Cut / Paste operations involving the database of the estimate works with the glossary 7.19.0703



Miscellaneous



New: More flexibility in Target Value 7.19.0767

New: Registry key or file to avoid the prompt when upgrading QDV files 7.19.0767

New: BIMetre format supported (BIM) 7.19.0765

New: Import of minutes fields from another estimate 7.19.0764

New: Complete Repair Tool 7.19.0760

New: New type of field in minutes ‘For Display Only’ 7.19.0759

New: Time-frames support Semesters and Quadrimesters 7.19.0753

New: Mixed time-frames can handle escalated or non-escalated quantities 7.19.0753

New: A new special column ‘QUANTITY_FOR_EVALUATION’ 7.19.0745

New: A new special column 'QUANTITY_X_QWBS’ 7.19.0745

New: A new special column QUANTITY_NUMBER 7.19.0747

New: A new special column Quantity_X_QEVAL 7.19.0748

New: A new special column QUANTITY_FOR_QEVALWBS added 7.19.0751

New: A new special column QUANTITY_FACTOR in the minutes 7.19.0700

New: Rounding quantities in the minutes 7.19.0748

New: Import / Export from Excel in WBV_ variable workbooks 7.19.0743

New: Quantity factor can be expressed as a percentage 7.19.0737

New: variables 'Qwbs' can be used in formula for quantity 7.19.0738

New: Group status kept when pushing lines to the database of the estimate 7.19.0731

New: System variable SYS_Sharing_Transparency_Mode 7.19.0729

New: Can share estimate with a database of the estimate 7.19.0710

New: ‘Update Currency Rates’ supports K (x1000) and M (x1000000) 7.19.0707

New: New column to deal with Throughput, Pace 7.19.0707

New: B.I. Tools now support Dashboards 7.19.0705



Databases



New: Browsing preferential databases extended 7.19.0719



Converter



New: Support for .XLSX workbooks in the converter module 7.19.0710



Programming



New: Variable for update currency rates function 7.19.0767

New: Added IMinute.StoreSetImageAsObject method in the user API 7.19.0764

New: IWbsFieldsRepository.ReservedVirtualFields property added in the API 7.19.0760

New: New version of IEstimate.RunQdvRequest added to the API 7.19.0754

New: API extended with new IEstimate. DisplayAnomalies method 7.19.0753

New: API extended with a new 'Gantt task dependency' parameter 7.19.0748

New: Macros, Requests and Events can be controlled from user profiles 7.19.0724

New: API extended with new methods for handling the task links 7.19.0698

New: API extended for sets. 7.19.0701

New: It’s now possible to group and ungroup rows from the API (requests and macros) 7.19.0704

New: Component added to support FTPS 7.19.0718

New: New sample macro to invoke all macros and requests 7.19.0719

New: Event “On_Before_Create_File_For_Parent” 7.19.0729

New: More functionality for estimate sharing in the user API 7.19.0696





...and much more... (see detail in versions 7.19.0696 to 7.19.0769).
